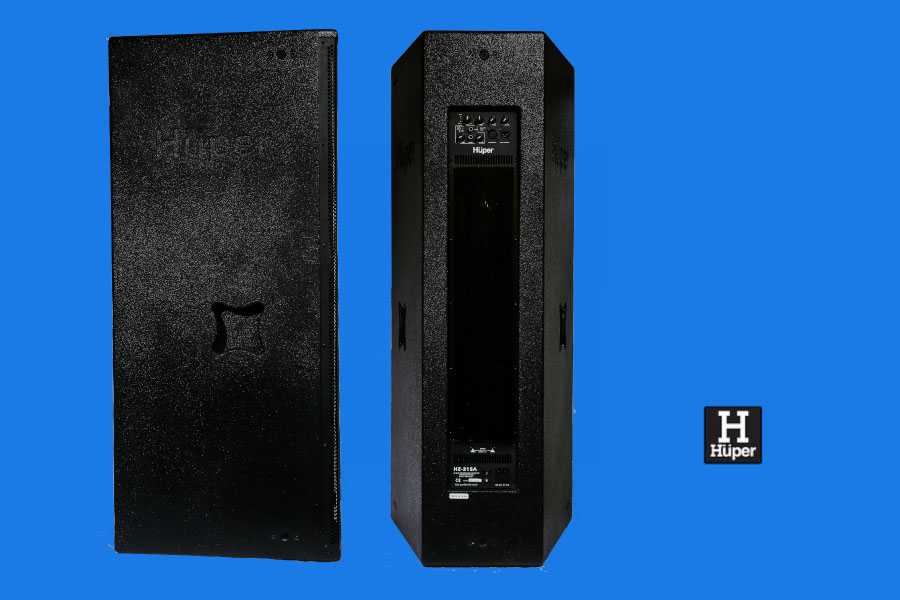

HZ-215A WOOD SPEAKER
Freq.Range(-10dB): 45Hz~20kHz
Freq.Response(-3dB): 50Hz~20kHz
Max Calculated SPL: 134.5dB
Amplifier Power LF: 1000W
Amplifier Power HF: 100W
AC Input : ~220-240V 10A 50Hz

DIM : 1145mm x 460mm x 516mm
Net Weight : 63 Kg

HZ-212A WOOD SPEAKER
3-way Active speaker
2x15"/75 mm 15 LF Transducer
2.5" Voice Coil, 1.4" Exit titanium compression driver80"x50* coverage pattern
smooth response with high power handling capcity (Long Term/ max), 131.5dB/134.5 dB
12 intergral suspension points
Complete mounting solutions

DIM : 940mm x 390mm x 450mm
Net Weight : 53 Kg

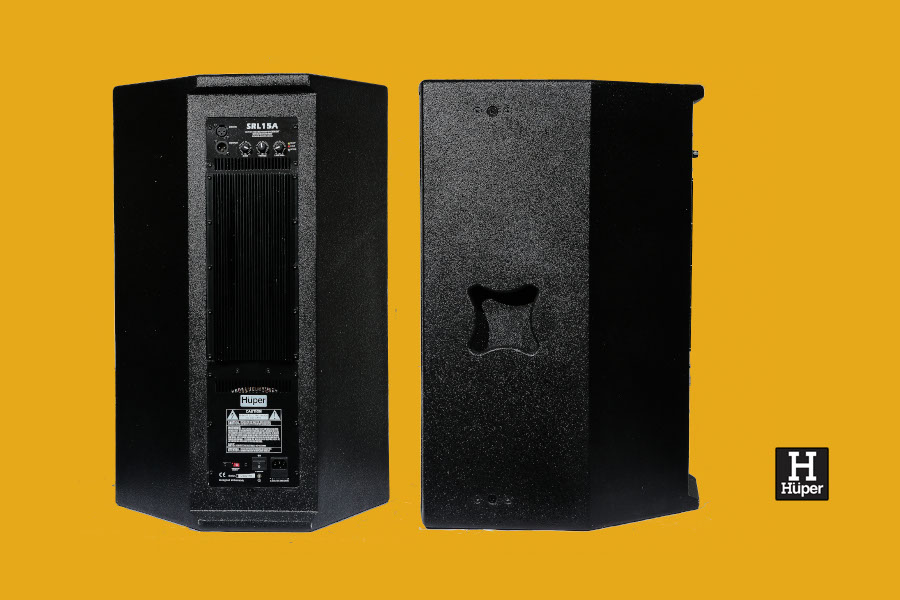

SLR-15A WOOD SPEAKER
Freq.Range(-10dB): 46Hz~20kHz
Freq.Response(-3dB): 55Hz~20kHz
Max Calculated SPL: 128.5dB
Amplifier Power LF: 450W
Amplifier Power HF: 100W
AC Input : ~100-120V/220-240V
6.3A/3.15A 60Hz/50Hz

DIM : 740mm x 485mm x 495mm
Net Weight : 45 Kg

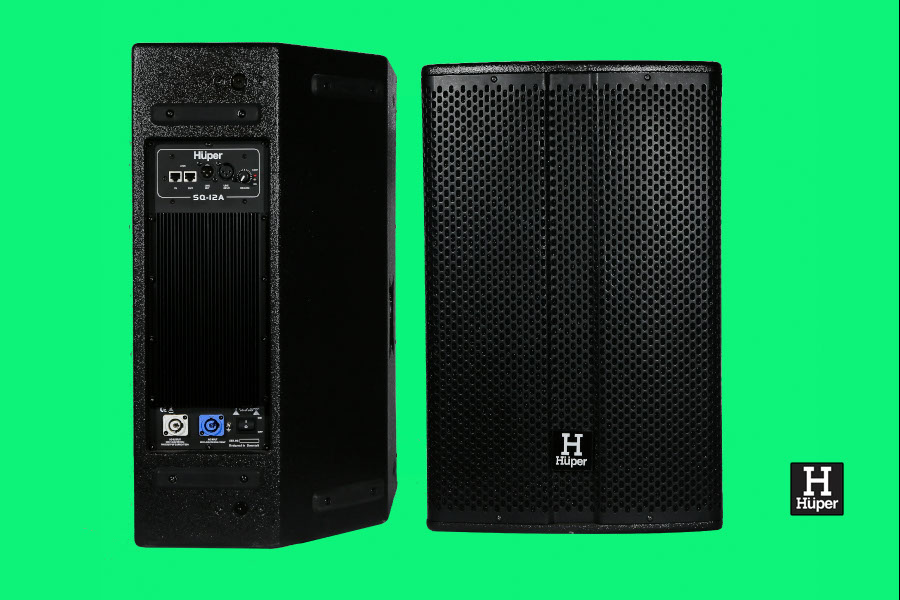

SQ-12A WOOD SPEAKER
Freq.Range(-10dB): 50Hz~18kHz
Freq.Response(-3dB): 55Hz~18kHz
Max Calculated SPL: 130.5dB
Amplifier Power LF: 700W
Amplifier Power HF: 300W
AC Input : 220V~240V/50/60Hz 1700W

DIM : 625mm x 401mm x 415mm
Net Weight : 31 Kg

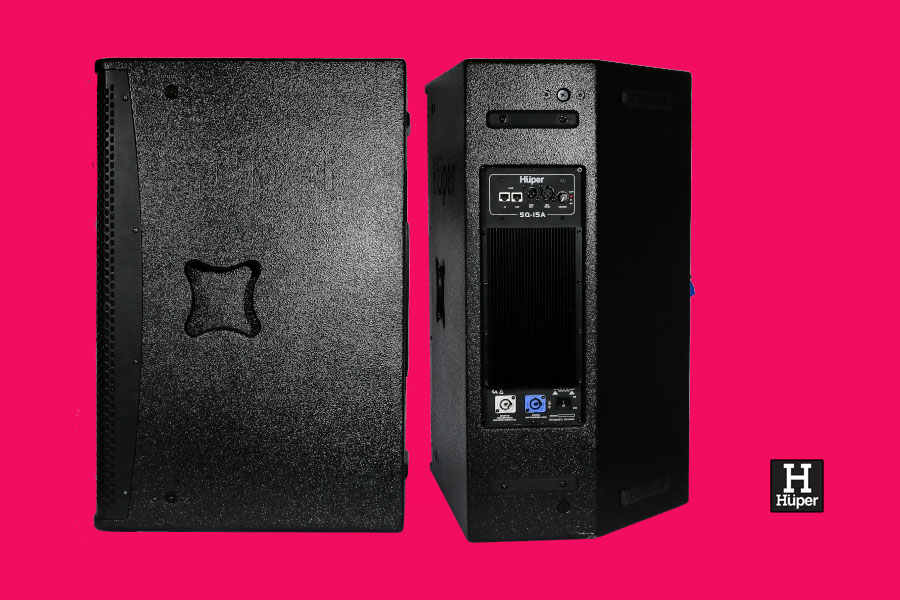

SQ-15A WOOD SPEAKER
Freq.Range(-10dB): 45Hz~18kHz
Freq.Response(-3dB): 50Hz~18kHz
Max Calculated SPL: 130.5dB
Amplifier Power LF: 700W
Amplifier Power HF: 300W
AC Input : 220V~240V/50/60Hz 1700W

DIM : 720mm x 471mm x 495mm
Net Weight : 37.5 Kg

MA-12A WOOD SPEAKER
SPEC NO READY YET

MA-15A WOOD SPEAKER
SPEC NO READY YET

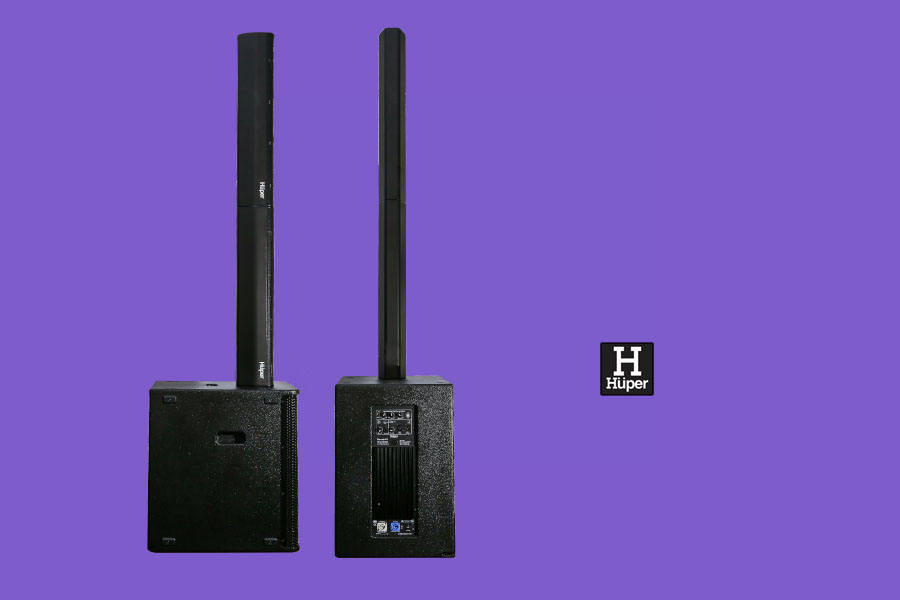

GENESIS 3.1 WOOD SPEAKER
Freq.Range(-10dB): 110Hz~18kHz
Freq.Response(-3dB): 135Hz~17kHz
Max Calculated SPL: 120dB
Amplifier Power LF: 160W
Amplifier Power HF: 320W
AC Input : 220V~240V/50/60Hz 1700W

DIM : 110mm x 770mm x 148.5mm
Net Weight : 7.6 Kg

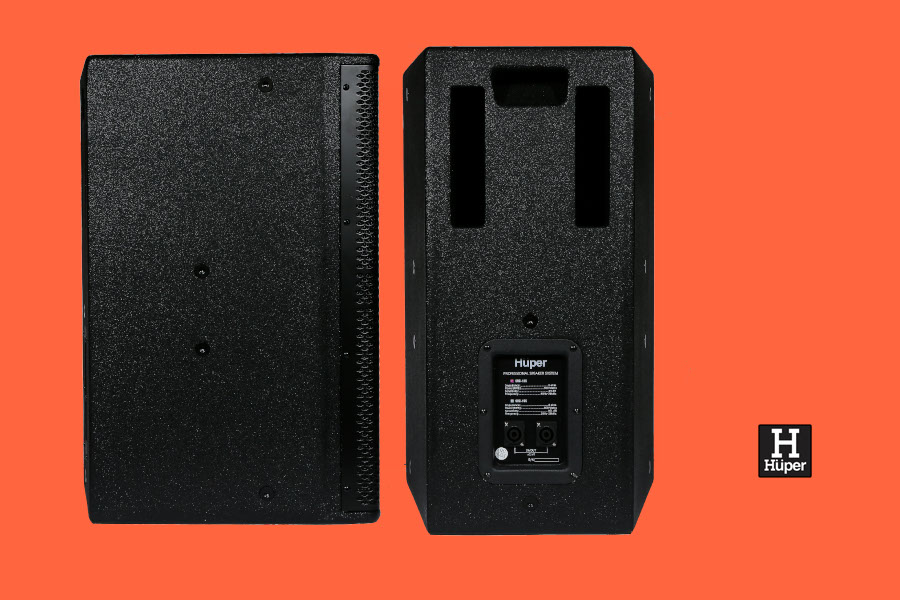

SRZ-12S WOOD SPEAKER
12" Two way speaker
Power: 500W (RMS)
Frequency response: 40 Hz-20 KHz
Nominal Independence: 8 ohm
Sensitivity: 99dB (1, 1W)

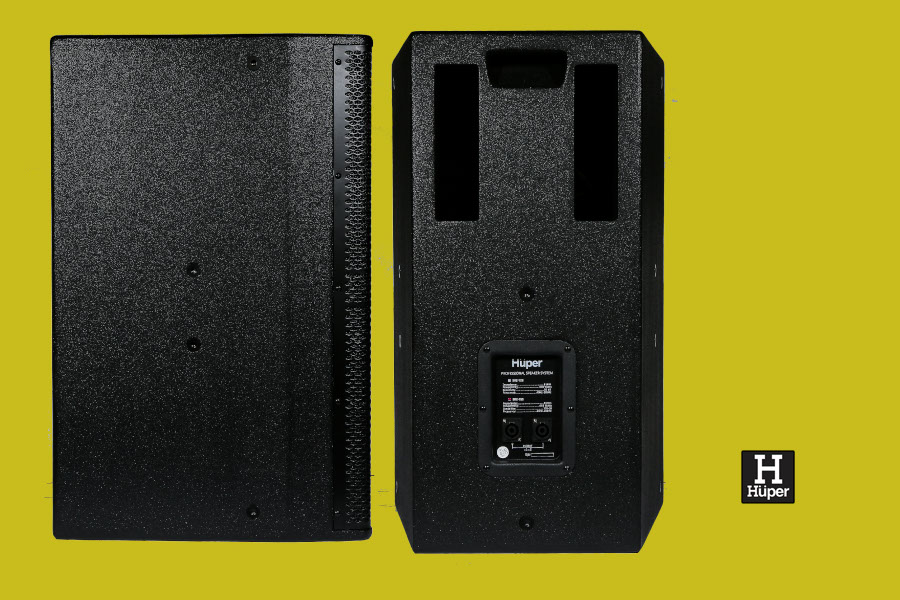

SRZ-15S WOOD SPEAKER
15" Two way speaker
Power: 600 W
Frequency Response: 38Hz-20kHz
Nominal Independence: 8 0hm
Sensitivity: 101dB (1m 1W)
