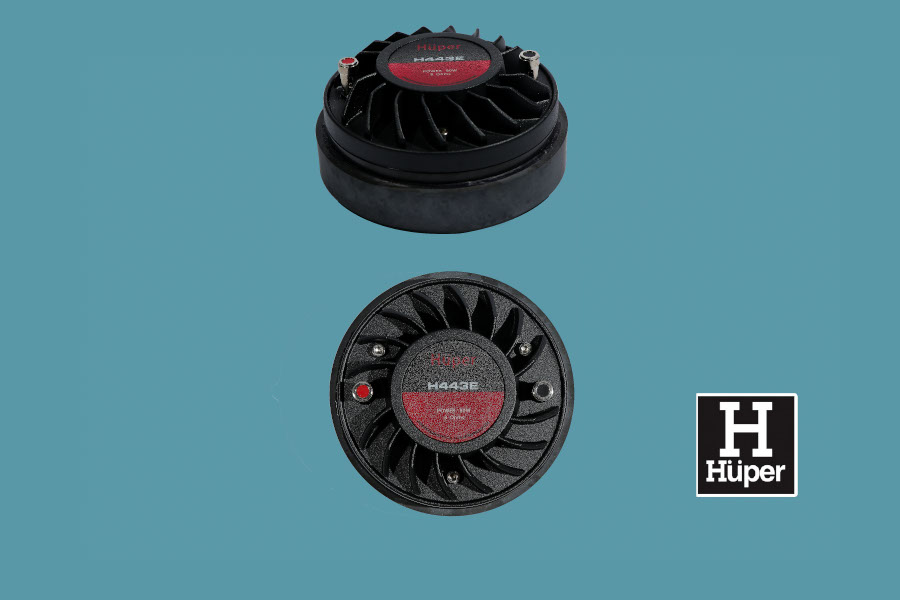

COMPONENTS: H443E
80 Watt Max Power
1 inch throat exit
44.4 mm (1.75 inch) voice coil
1.5 KHz to 18KHz frequency response
105 dB 1W @1m sensitivity
Ferrite magnet structure
What it look like
COMPONENTS: K10F-350A
10 inch Woofer
Voice coil: 3
Sensitivity: 96 dB
Frequency range:50-3K
Program Power: 700W
COMPONENTS: K12F-350A
Nominal Diameter : 12”
Power Handling Capacity: 350
Program Power : 700 Watt
Frequency Range : 43-2.5K
Overal Diameter : 316mm
Net Weight : 7.7 Kg
COMPONENTS: K15-F400
15 inch Woofer
400 W (power handling)
800 Watts 98 dB
Frequency Range: 40-3K
3 in voice coil
Nominal independence: 8
COMPONENTS: S18-G800
1600 watts Max power
99.5 mm (4inch) voice coil
42Hz to 200Hz frequency response
98dB 1W@1 sensitivity
Ferrite magnet structure
COMPONENTS: S18-l-10001A
2000 Watt Max Power
125 mm (5 inch) Voice Coil
35 Hz to 1 kHz frequency response
98 dB 1W@1m sensitivity
Ferrite magnet structure
Paper cone
COMPONENTS: V1230K
600 Watt Max Power
75.5mm (3inch) Voice coil
45Hz to3kHz frequency response
97 dB 1W@1m sensitivity
Ferrite magnet structure
Paper cone
COMPONENTS: V1530K
600 Watt Max Power
75.5mm (3inch) Voice coil
45Hz to3kHz frequency response
98 dB 1W@1m sensitivity
Ferrite magnet structure
Paper cone

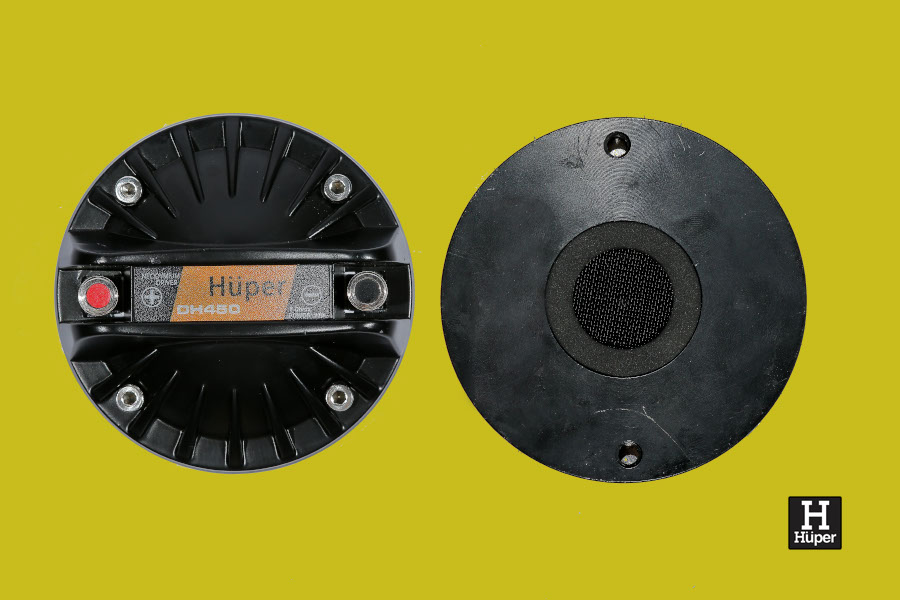

COMPONENTS: DH450
SPECS NOT READY YET

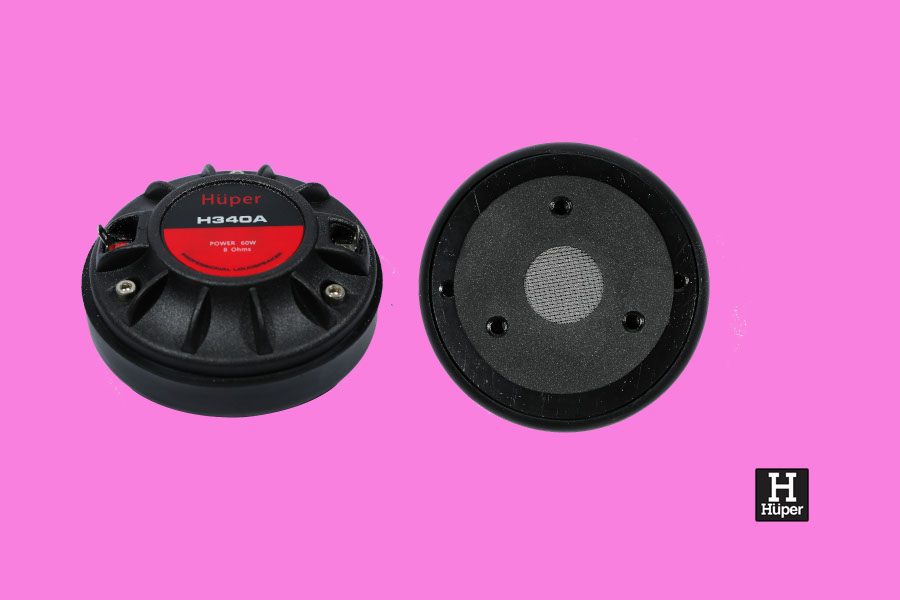

COMPONENTS: H340A
60 Watt max Power
1 inch throat exit
34.4 mm (1.35 inch) voice coil
1.8KHz to 20 KHz frequency response
105 dB 1W@1m sensitivity
Ferrite magnet structure
COMPONENTS: SCB18G902XL
1800 Watt Max Power
99.5mm (4 inch) Voice coil
30 Hz to 200 Hz frequency response
95 dB 1W @1m sensitivity
Ferrite magnet structure
Paper cone
Rubber roll surround
COMPONENTS: SCB21H2002
Size: 21 inch
Power: 4000 watt max power
6 inch voice coil
36Hz to 200Hz frequency response
98 dB 1W@1m sensitivity
Ferrite magnet structure
Carbon cone
COMPONENTS: SCD21H2002
4000 Watt Max Power
150.6mm (6”) Voice Coil
30Hz to 200Hz Frequency Response
Neodymium magnet structure
Carbon Cone
Net Weight : 18 Kg
v class="all-content-wrapper-half">
COMPONENTS: SCB18L1202
Nominal diameter: 18 inch
Max Power: 2400
Nominal impedance: 8
Sensitivity: 98dB
Frequency range: 36-200Hz
Voice coil diameter: 125/5 mm/in

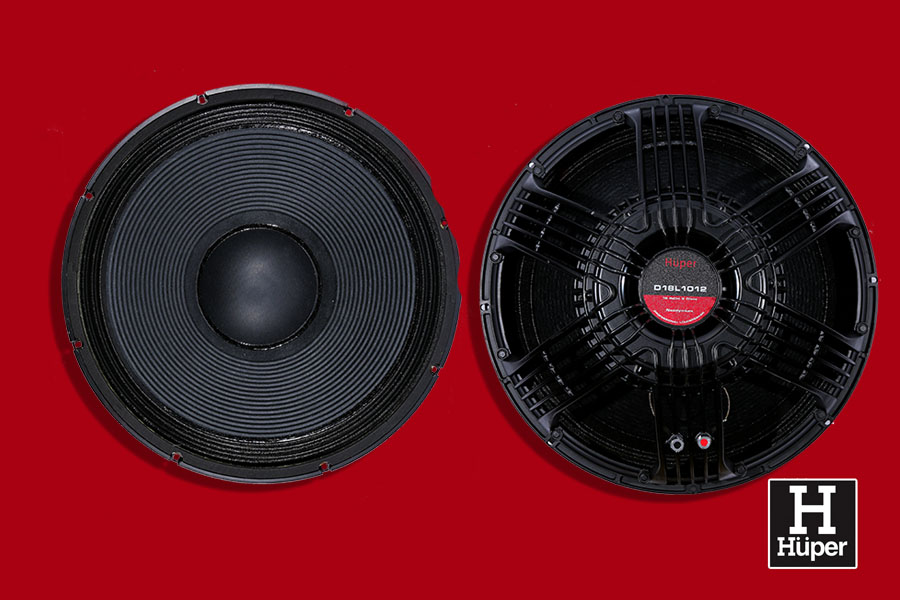

COMPONENTS: D18L1012
2000 Watt Max Power
125mm (5 inch) Voice coil
38 Hz to 1.5 kHz frequency response
99dB 1W @ 1m sensitivity
Neodymium magnet structure
COMPONENTS: D18G812
1600 Watt Max Power
99.5 mm (4inch) Voice Coil
35Hz to 1.5 kHz frequency response
97dB 1W@1m sensitivity
Neodymium magnet structure
COMPONENTS: HB640
12o Watt Max Power
1.5 Inch throat exit
63.5 mm (2.5 inch) Voice coil
1 KHz to 18KHz frequency response
107db 1W@ 1m sensitivity
Ferrite magnet structure
